  1. ECG Recordings and Analysis

PDF Measurement Report

PreviousHow to Proceed with Measurement EvaluationNextSubscription and Payments

Last updated 9 months ago

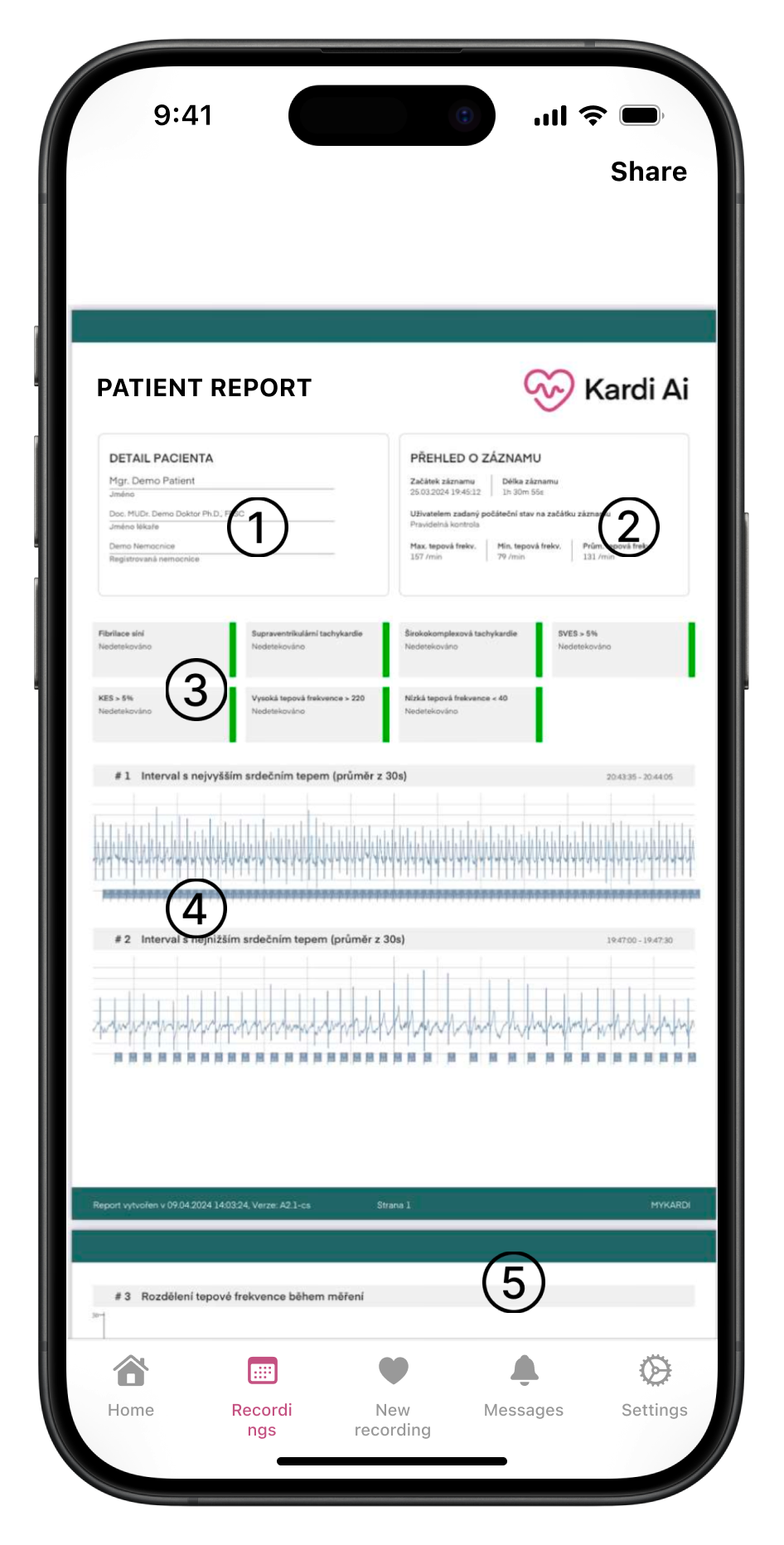

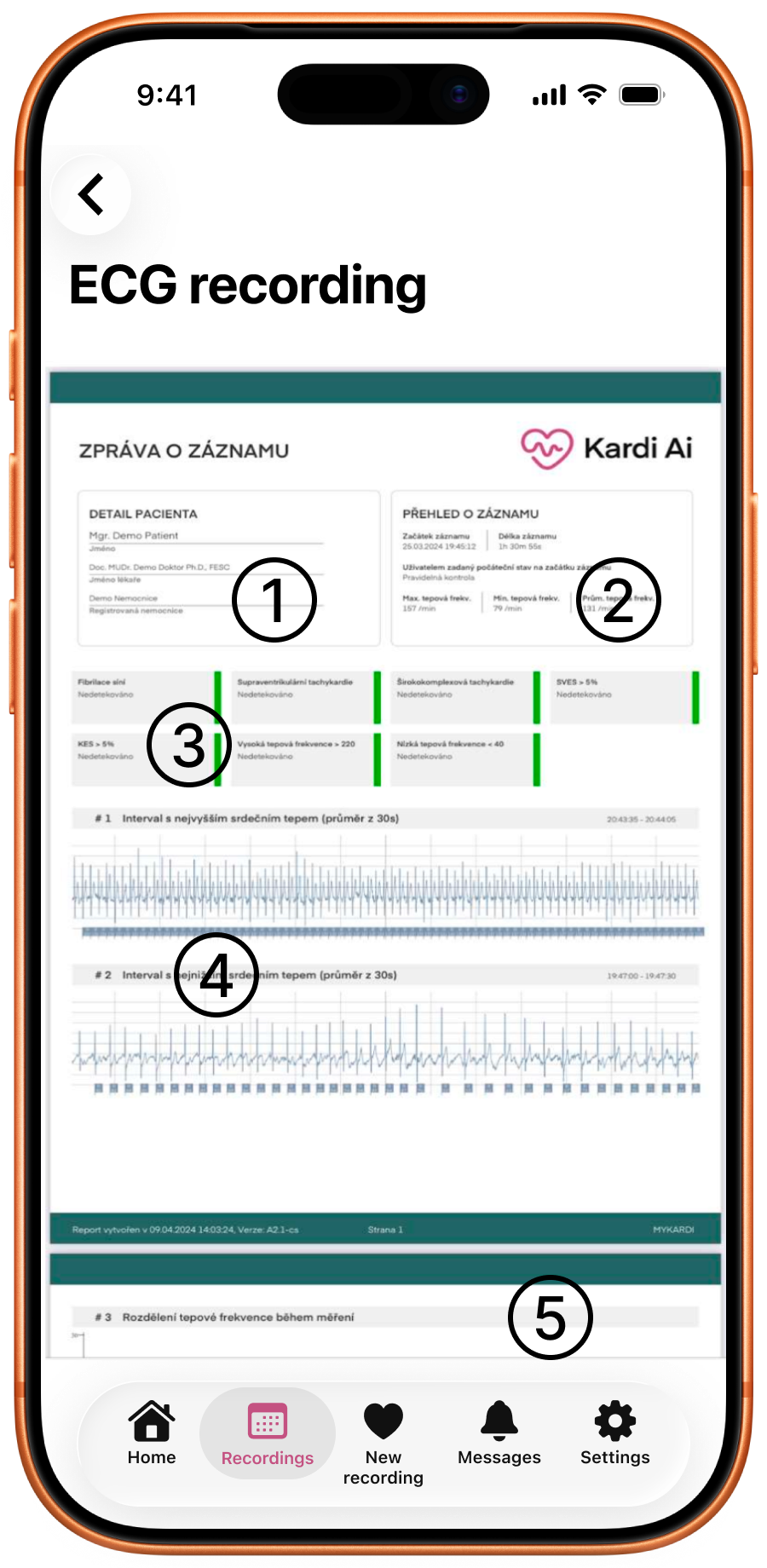

For each measurement, you can download a report with an ECG sample in PDF format by clicking the download report button. The user can then share the report with their doctor.

This ECG report is created based on AI detections and summarizes its analysis. The text of the report is generated based on predefined rules. The report also includes specific sections of the ECG that the AI selected as representative for the displayed section.

  1. Patient Details Patient's name, doctor, and hospital.

  2. Measurement Overview

    • Start of Recording Date and time the measurement started.

    • Recording Duration Total duration of the recording.

    • Health Condition The initial condition entered by the user at the beginning of the recording - the reason for starting the ECG recording.

    • Heart Rate Minimum, maximum, and average values.

  3. Overview of Detected Monitored Heart Disorders

    For more information, proceed to examples-of-heart-rhythm-disorders.

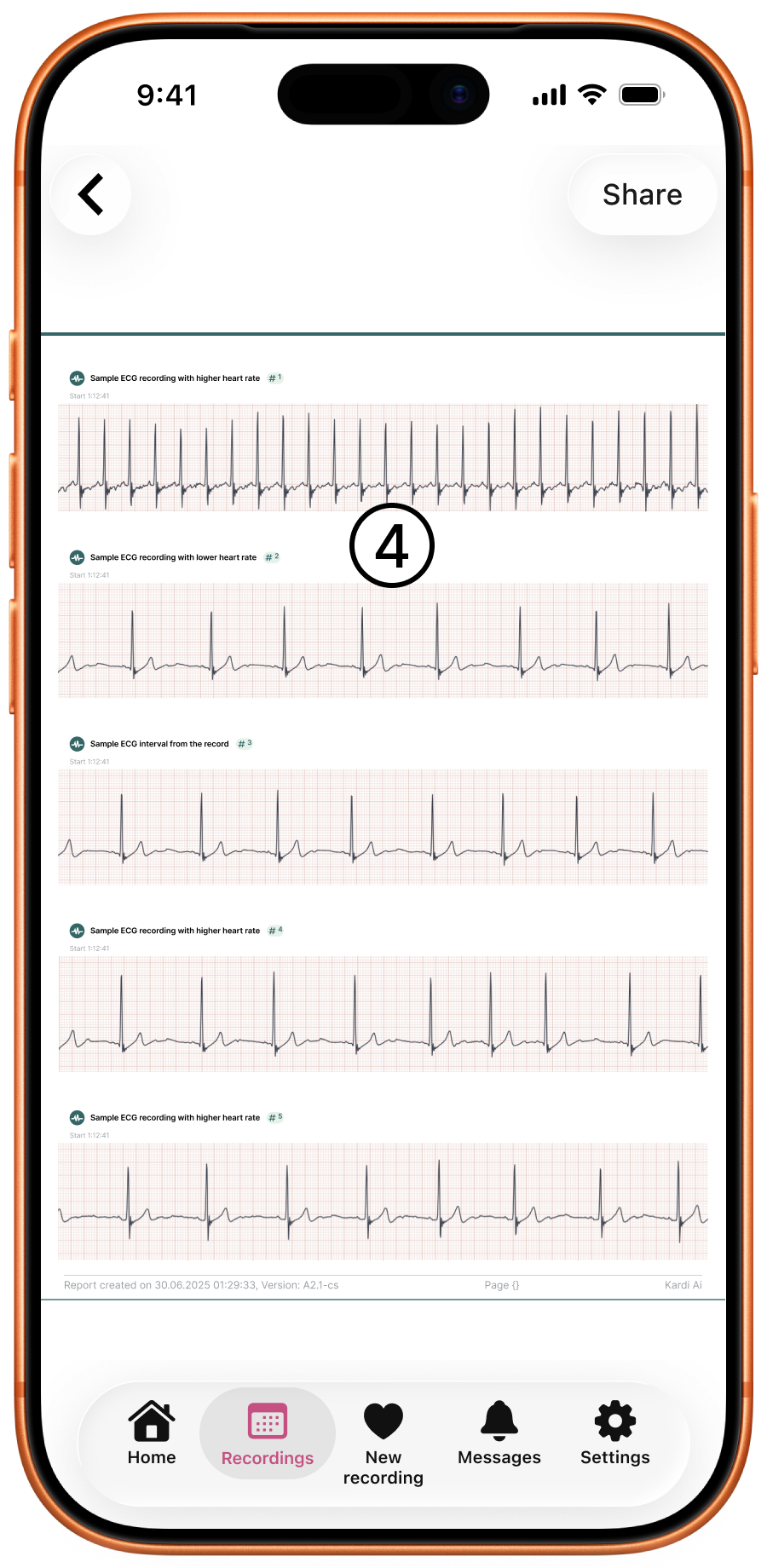

  4. EKG Recording Previews

    1. EKG Recording with User Alert (Optional) If you experience health issues during the EKG recording using the app, a specific area of the EKG recording where these issues were recorded will appear in your report.

    2. Interval with the Lowest Heart Rate

    3. Heart Rate Distribution This section contains a graph showing the distribution of your heart rate during the ECG recording.

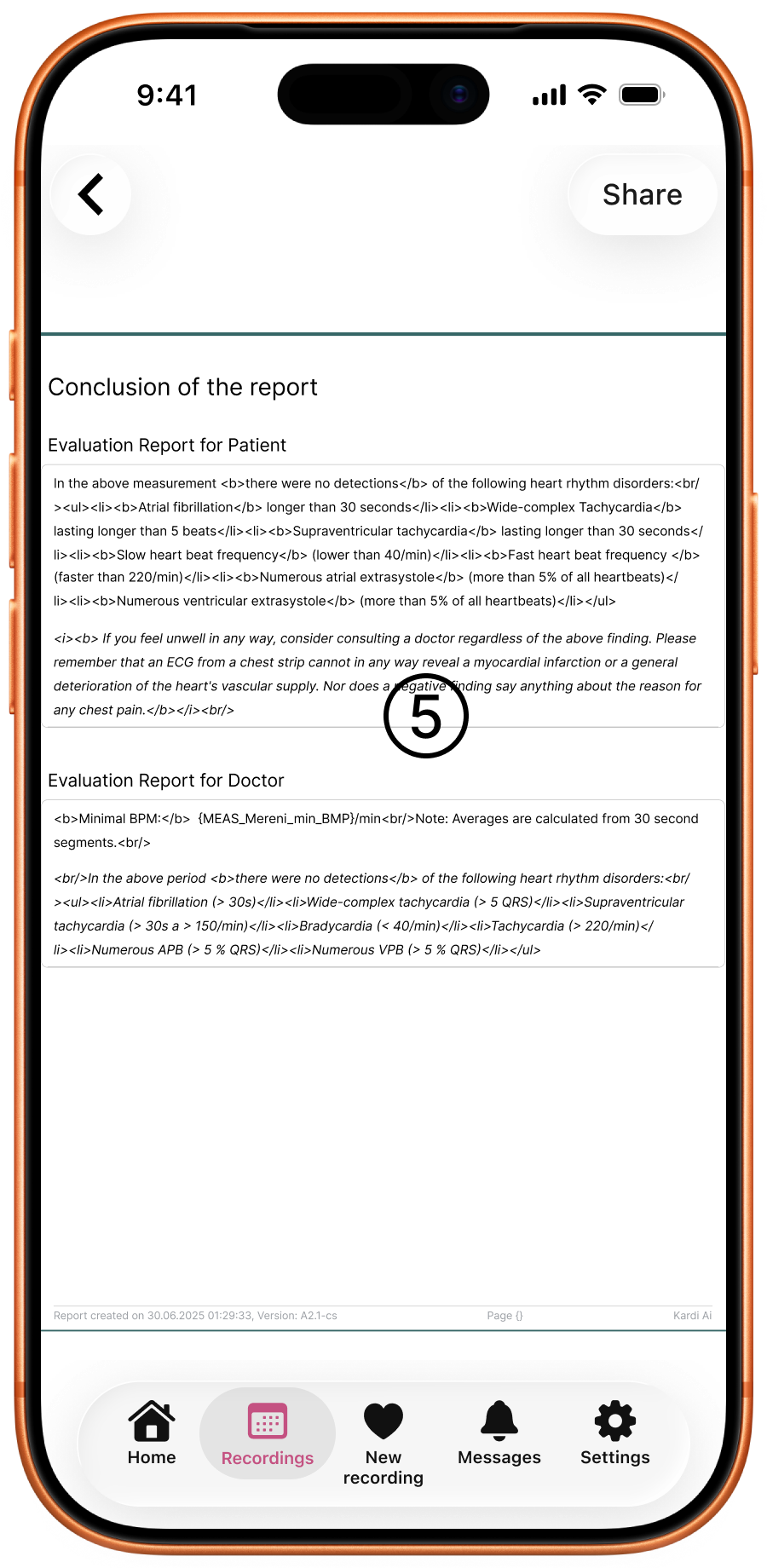

  5. Summary of the Recording

    1. Report Evaluation for the Patient

      Summary report of the recording for the patient.

    2. Report Evaluation for the Doctor

      Summary report of the recording for submission to the attending physician. The doctor can access the patient's ECG recordings from long-term Kardi Ai monitoring by contacting Kardi Ai customer support.

The Kardi Ai app performs only a preliminary ECG analysis (preliminary screening) through AI and informs the patient of a negative or positive preliminary screening result. A definitive diagnosis can ONLY be made by a doctor, and only after examining a single-lead ECG recording longer than 30 seconds or a 12-lead ECG and confirming the actual diagnosis.
