Measurement Evaluation Traffic Light

The colored traffic light in the Kardi Ai app shows you the result of the measurement evaluation for each record.

danger

Kardi Ai does not evaluate heart attacks or other acute conditions. If you do not feel well, consider calling the emergency services regardless of the measurement evaluation by the Kardi Ai system.

info

The colored highlighting of a record in the list and in the measurement detail indicates the evaluation of the measurement for the presence of monitored heart rhythms using artificial intelligence.

Grey measurement

Grey highlighting means that the record does not yet have an evaluation result. Two cases may occur:

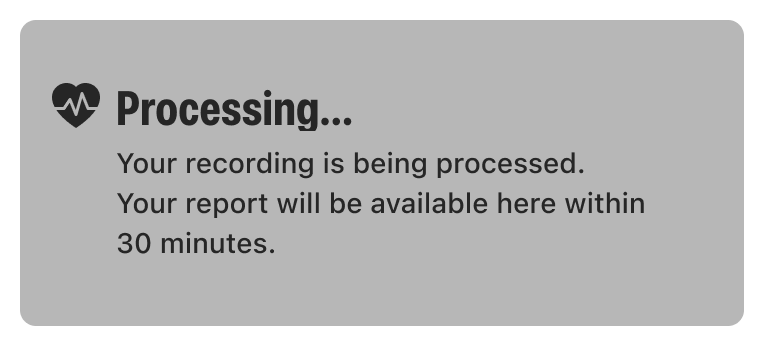

Processing

Your record is being processed. The evaluation (report) will be available within 30 minutes. The processing time depends on the length of the measurement.

Example from the app:

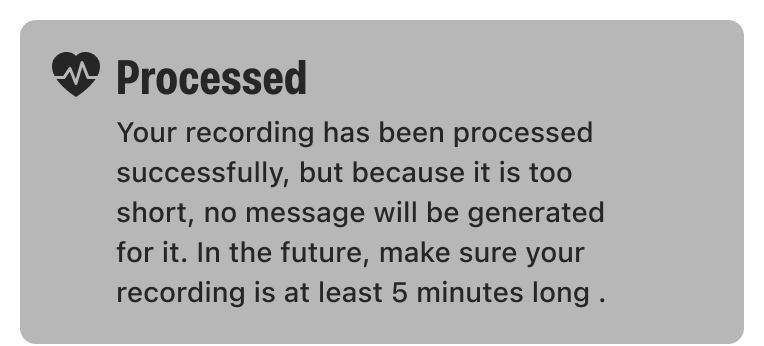

Processed

Your record was successfully processed, but because it is too short, no report will be generated for it. To generate a report, make sure your record is at least 5 minutes long.

Example from the app:

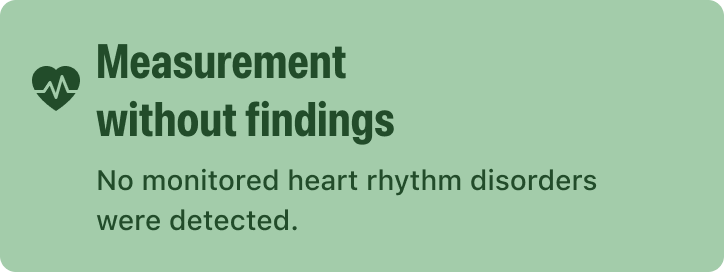

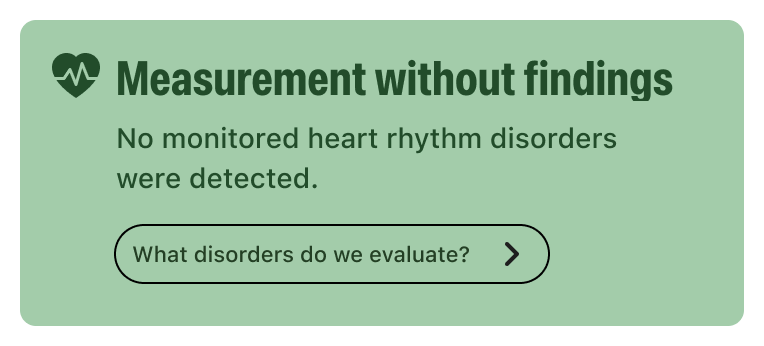

Green measurement

The measurement result shows no findings of monitored heart rhythm disorders.

Example from the app:

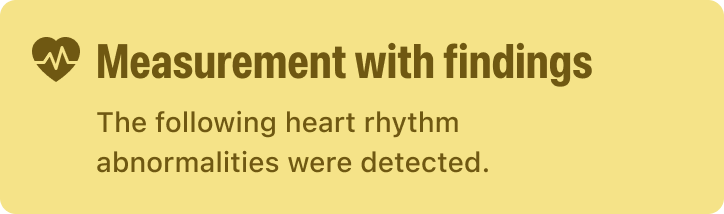

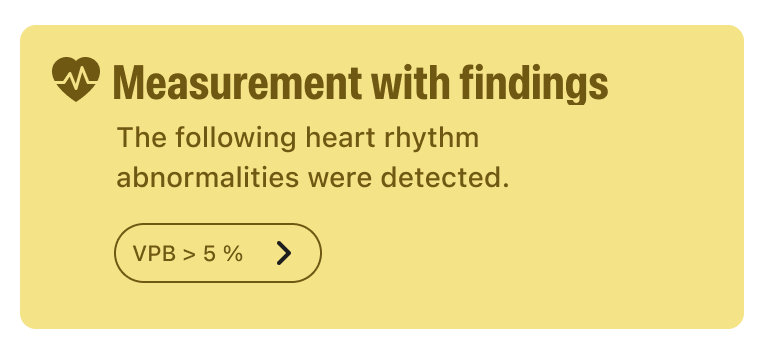

Yellow measurement

The measurement result shows a finding in the yellow category and no finding in the orange category.

Indicators of the yellow category:

• Atrial fibrillation was detected in the measurement, but the heart rate during atrial fibrillation did not exceed 160 beats per minute (lasting longer than 30 seconds)
• Supraventricular tachycardia was detected in the measurement (lasting longer than 30 seconds)
• At least 5 percent of supraventricular extrasystoles were detected in the measurement (of the total number of evaluated beats)
• At least 5 percent, but no more than 20 percent of ventricular extrasystoles were detected in the measurement (of the total number of evaluated beats)

⚠️ In the case of a yellow evaluation, it is recommended to discuss the results with your doctor at your next regular checkup. If you do not have a regular checkup scheduled, please schedule one.

Example from the app:

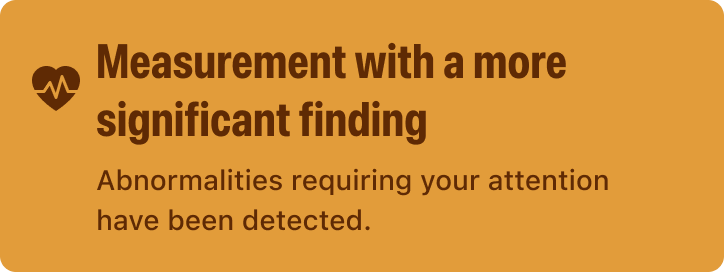

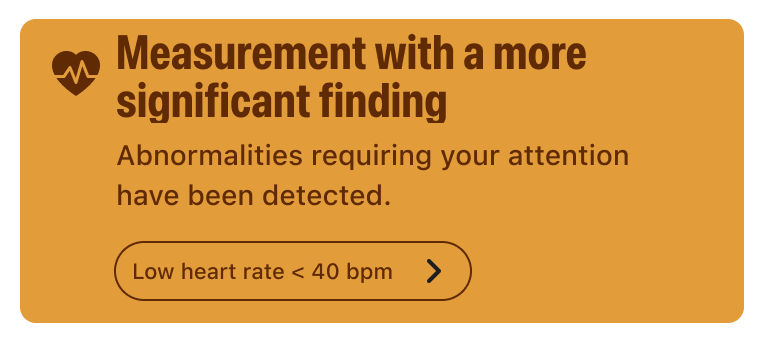

Orange measurement

The measurement result shows a finding in the orange category.

Indicators of the orange category:

• Wide-complex tachycardia was detected in the measurement
• Atrial fibrillation with a heart rate higher than 160 beats per minute was detected in the measurement
• A heart rate lower than 40 beats per minute was detected in the measurement (averaged over 30s)
• A heart rate higher than 220 beats per minute was detected in the measurement (averaged over 30s)
• More than 20 percent of ventricular extrasystoles were detected in the measurement (of the total number of evaluated beats)

⚠️ In the case of an orange evaluation, an early visit to your doctor, with whom you should go through the measurement results, is recommended. If you do not have a doctor's visit scheduled in the near future, please schedule one.

Example from the app:

---

danger

Never make a diagnosis or treat yourself based on screening results. Always consult your doctor. ONLY a doctor can definitively confirm your diagnosis based on further examination.

---

The Kardi Ai app performs only a preliminary analysis of the ECG (preliminary screening) via AI and informs the patient about a negative or positive preliminary screening. ONLY a doctor can make a definitive diagnosis after examining a single-lead ECG record longer than 30 s or a 12-lead ECG and confirming what diagnosis is actually involved in your case.

---

Do not adjust medication based on the values measured by this medical device or based on the results of the preliminary screening! Take medications as prescribed by your attending physician. ONLY A DOCTOR IS QUALIFIED to diagnose and treat diseases related to the heart and circulatory system.
